Cast iron radiator MC140

Place of Origin:
Hebei, China (Mainland)
Brand Name:
Chunfeng
Model Number:
140
Color:
RED
Assembled:
Steel nipples
Opening size:
1-1/4″
Gaslets:
Silicone gaskets
Media:
Hot water
Testing pressure:
1.5 Mpa
Working pressure:
0.8-1.0 Mpa
Quantity of 20ft container:
3500 pcs
Weight:
5.7 kgs
Certificates:
GOST, ISO9000, CE
SupplyAbility:
100000 Piece/Pieces per Month
Packaging Details
wooden pallets
Port
TIANJIN PORT
Lead Time
15 DAYS

A: Why choose us to cooperate?

1, We specialized in manufacturing the cast iron radiators from 1972.

2, Product quality is stable and reliable

3, Complete specifications and reasonable price

4, Over more than 30 years of export experience, prompt response and attentive service



Item

sizes

Main size of single sheet (mm)

weight

(kg)

Heat

diffusion

(W)

Working Pressure

(MPa)

The quantity per 20’ container

(pc)

height

(mm)

width

(mm)

length

(mm)

the entrance and

exit central distance

of the same side

(mm)

Hot water

High

pressure

Normal pressure

MC-140

588

140

85

500

5.8

170.00

1.0

0.8

3500



https://www.alibaba.com/product-detail/Cast-iron-radiator-MC140_60583807719.html

8L Junkers Instant Gas Water Heater

  • 1000 – 1999 Sets
    US $18.70
  • >=2000 Sets
    US $18.60
Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Housing Material:
Stainless Steel
Certification:
Other
Power (W):
12000
Voltage (V):
3
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HINEW/OEM
Model Number:
MHS-Z19
SupplyAbility:
10000 Piece/Pieces per Month
Packaging Details
1pcs/ctn,packed in brown carton or color carton with foam
Port
Zhongshan
Lead Time:
Shipped in 25 days after payment

8L instant gas water heater

1. Specification:

(1)/6/8/10/12/16 L available

(2)LCD display for optional

(3)Gas type: LPG/NG

(4)Rated gas pressure(Pa): LPG:2800Pa   NG:1300Pa&2000Pa

(5)Water pressure(MPa):   0.006-0.85MPa

(6)Double ignition pin, Automatic electrical pulse ignition device

(7)Flameout protection

(8)Over water pressure protection

(9)Winter-summer switch option for gas saving

(10)The 20-minute timer is optional

(11)Different colors available



Welcome to contact us by followings:



https://www.alibaba.com/product-detail/8L-junkers-instant-gas-water-heater_1899945021.html

High absorption room heater no pressure solar water heater

Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Wall Mounted
Housing Material:
imported color plate
Certification:
CE, CCC, ISO9001
Capacity:
300
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Sunris
Model Number:
SR-58/300
Out tank material:
Imported color plate
Size::
47*1500mm 58*1800mm
Quantity::
10/15/18/20/24/30/34/36
Hail resistance::
diameter 25mm
Absorption::
93%
Inner tank diameter::
320mm and 360mm
Outer tank diameter::
420mm and 460mm
Name::
room heater no pressure solar water heater
Packing ::
Export Carton
Certification::
CE,CCC, ISO9001
SupplyAbility:
3000 Set/Sets per Month
Packaging Details
export carton
Port
Shanghai
Lead Time:
7-15 days
High absorption  no pressure  room heater working principle:
Solar vacuum tube was evacuated into the tank,the coating inside of tube can absorb more than 92%

heat energy from sunshine,The cold water in water tank flows into the tube and become hot,because

of different density between cold and hot,there will be a natural circulation in the tube.Hot water will

float back to tank.

no pressure room heater solar water heater
Specifications:

Collector specification:

47-1500,58-1800,70-2000

Inner tank material:

Imported foodSpecifications:

Collector specification:

47-1500,58-1800,70-2000

Inner tank material:

Imported food grade stainless steel SUS304-2B

Outer tank material:

High quality color plate or galvanized plate,high quality

silver shine Fluorocarbon plate

Insulation layer:

50mm-60mm polyurethane foam with constant

temperature

Bracket material:imported high quality electrophoresis

aluminum alloy grade stainless steel SUS304-2B

Outer tank material:

High quality color plate or galvanized plate,high quality

silver shine Fluorocarbon plate

Insulation layer:

50mm-60mm polyurethane foam with constant temperature

Technique parameters of no pressure room heater solar water heater:
Type Tube numbers(pcs) 16 18 20 24 30 36
Φ58*

1800mm

Volume(L) 170 190 210 150 320 380
  Usage for person 3-4 4-5 5-6 7-8 10-12 12-15

Main parts of no pressure room heater solar water heater

1.Insulation layer
Specifications of insulation layer:

1. 50-60mm imported polyurethane foaming with high pressure and density(45kg/m3)
2. Heat preservation: 72 hours

Capacity:90L  100L  120L  150L    160L  180L  240L  300L

Hail resistance: 20-30mm
Fastness: stainless steel screws
Seal: silicone rubber polymer
Temperature heat: 45-95 degree Celsius
Reflect: 38-45 angle

2.General vacuum tube:
Three high vacuum tube
Specifications:

Material of glass:borosilicate glass 3.3

Vacuum degree:5*10-3

Absorption:93%

Emittance:0.05

Structure:all glass coaxial double-layer tube

Diameter:47mm and 58mm

Length:1500mm and 1800mm

Transmittance of outer tube:0.91

Stagnation temperature:250 °C

Bearing hailstone ability:diameter less than 25mm

3.Water tank:
Specifications:

Inner water tank:imported stainless steel 304-2B with thickness of 0.31mm

Diameter of inner tank:320mm and 360mm

Diameter od outer tank:420mm and 460mm

Outer tank:imported color plate,galvanized plate and stainless steel

Possible accessories:
Primary Competitive Advantage:
1>     CE , CCC , ISO9001

2>     Competitive Price

3>     Prompt delivery

4>     Environmental protection

5>     Small order and OEM order accepted

Packing detail:
Certification:

https://www.alibaba.com/product-detail/High-absorption-room-heater-no-pressure_1582823404.html

DC inverter split air to water heat pump for house heating 10kw 20kw

  • 2 – 4 Pieces

    US $1650.00
  • >=5 Pieces

    US $1580.00
Type:
Air Source Heat Pump, split DC inverter heat pump
Installation:
Wall Mounted
Storage / Tankless:
Storage
Housing Material:
galvanized steel
Use:
domestics ,apartments ,schools ,offices
Certification:
CE, EMC
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sundez or OEM
Model Number:
SDDC-075-B
Compressor:
inverter rotary
Condenser:
brazed plate heat exchanger
Throttling:
electronic expansion valve
Evaporator:
hydrophilic and louvered fin-tube
Circulation pump:
WILO
Controller:
LCD
Fan:
automatical 3 speeds
Applicable ambient temp.:
-20~+43
Max.hot water temperature:
55℃
SupplyAbility:
1000 Set/Sets per Month
Packaging Details
carton + polywood crate packing
Port
xiaolan port of Zhongshan city
Lead Time
:
within 20 days

Sundez DC inverter split air to water heat pump for house heating

Sundez DC inverter heat pump is one of the best heat pumps for house heating so far, with advanced DC inverter technology, saving 40% electricity than normal on/off heat pump in practical operation. The whole system is optimized with variable fan speed, while the temperature compensation function contributes to a more comfortable indoor environment. It can work with solar, boiler or electric heater according to practical condition of the heating system.



Features:



– with Advanced DC inverter technology, it saves 40% energy than normal heat pump in practical operation.

5 modes to manage heating, cooling and DHW, fits your need all year round.

 – with temperature compensation function, the water setting temperature adjusts automatically as the house’s heat loss changes.

Automatically variable fan speed in 3 grades to optimized heating efficiency.

– Can work with room thermostat.

– Can work with auxiliary heater.

Split design with water system indoor, preventing water frozen problem.

– Aviation plug for wire connection between indoor unit and outdoor unit, simplifies installation and avoids mistakes.

– with controller interface, plate heat exchanger, circulation pump, flow switch, water pressure gauge in indoor unit.

– Allows absence of buffer tank.



    SDDC-050-B SDDC-075-B SDDC-125-B
Power Supply V/Ph/Hz 220-240/1/50 220-240/1/50 220-240/1/50
Rated Heating Capacity KW 5.5 8.6 17.2
Heating Capacity Range KW 0.87~7.00 1.50~10.50 2.60~19.80
Heating Input Power W 300~1630 500~2450 1000~4400
COP W/W 2.9~4.5 2.9~4.5 2.9~4.5
Max. hot water temperature DegC 55 55 55
Applicable ambient temp. DegC -20~+43 -20~+43 -20~+43
Compressor   Inverter rotary Inverter rotary Inverter rotary
Refrigerant   R410A R410A R410A
Water Flow Volume m 3 /h 1 1.37 2.3
Water Pressure Drop kpa 12 12 20
Circulation pump   Built-in Built-in Built-in
Fan Quantity     1 1 2
Fan direction     Horizontal Horizontal Horizontal
Noise Outdoor unit dB(A) 48 49 53
Indoor unit dB(A) 30 30 30
Net weight Outdoor unit Kg 50 60 121
Indoor unit Kg 30 36 62
Net Dimension Outdoor unit mm L× W× H 830*310*710 880*360*800 930*390*1270
Indoor unit mm H× W× D 732*410*319 732*410*319 732*410*319
Test Condition(A7/W35): ambient Temp. DB/WB 7/6 DegC, water inlet /outlet Temp. 30/35 DegC.



 Installation diagram









Model

SDDC-075-B

MOQ(units)

5



20’FT

40’FT

40’HQ

Container loading (units)

49

99

102

Delivery :20 days after arrival of down payment





Installabtion cases

Sundez dc inverter heat pumps are with stable performance and good quality that they are our most popular items. Our clients always reorder from us, they don’t need to worry about the maintainence.





Our Services

A. Payment service
1, T/T
2, L/C (for container order only)



B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in and after the warranty time.
4, We supply the training course to your workers at our factory if you need.

5. We can offer site training to your workers in your place which is negotiable.



C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, Standard warranty time: two years’ warranty for heat pumps and 18 months’ warranty for water tanks and fan coils.

You can also pay for extended warranty or we can renegotiate the longer warranty period.
3, Spare parts and technical support at most economic prices after the warranty.







Company Information

We have two brands, SUNDEZ & YANGZI.

Yangzi heat pumps and water tanks are famous in domestic market while SUNDEZ is for overseas market.



Sundez owns two factories, one is in Zhongshan city, Guangdong province, the other is in Chuzhou city of Anhui province. We can produce over 2000 sets of heat pumps (with water tanks) each month.





Please contact us if you want to find a reliable Chinese factory for production! We accept OEM and ODM. Our R&D team is always on the way of innovations.



You can visit our Zhongshan production base or Chuzhou production base.







Packaging & Shipping

Standard Export packaging for heat pumps:

LCL order: Plastic film covered + honeycomb paper+ Carton box+ Polywood

Container order: Plastic film covered + honeycomb paper+ Carton box



Quality Control



1. Complying with ISO standard. Quality Ensured.



2. Complete Inspection for each unit before out of factory, covering water system and electricity detection and testing, ensuring 100% right product before shipment.



3. Strict quality control during production. We have liquid soap detection, halogen detection, electrical detection and water-soaking detection during production to avoid gas leakage and electrical problems .



4. Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves, flow switches, controllers etc.. Selection inspection for small parts such as sensors, pressure switches etc..



5. Well noise control by using mute cotton for casing plates and soft rubber feet for floating compressors, some of the models use compressor isolation shields.



6. Well insulated with insulated cotton for every pipe and parts, include compressor, dryer filter and each pipes.



7. We have passed TUV  and SGS inspections. We have CE, RoHs, IEC, CCC, CB certificates for most of our products. Some of our products have en14511 test, en14825 test.



We will do our best to coordinate with you to offer products according to your requirements, please don’t hesitate to tell us your wishes!











https://www.alibaba.com/product-detail/DC-inverter-split-air-to-water_1786762375.html





Flat Plate Solar Panel Water Heater

Type:
Flat-Plate
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
aluminium alloy
Certification:
CE, ISO, CCC
Capacity:
150, 100–500L
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
AUDARY OR OEM
Model Number:
ADL-FP
header pipe:
copper 1.0mm
insulation layer:
rock wool
manifold tank:
aluminuim alloy 1.8mm
bracket:
aluminuim alloy 2.0mm
evacuated tube:
borosilicate glass 3.3
heat pipe:
coppr 0.6m/0.7m/0.8m
Use:
Bathroom or swimming pool
Warranty:
5-year
longevity:
15-year
SupplyAbility:
3000 Piece/Pieces per Month
Packaging Details
full container load: Carton

less container load:wooden box
Port
SHANGHAI
Lead Time
:
Shipped in 15 days after payment
Product Details

Features

1)Cover a window on heat pipe solar collector , has better appearance.
2)Reliable and efficient twin-glass solar tubes.
3)Copper heat pipes for rapid heat transfer.
4)Easy plug-in installation.
5)Free maintenance.
6) Work pressure: 8 bars.
7)Stable solar conversion during the day.
8)The perfect solar collector for domestic solar water heater systems.
9)Ideal for commercial solar water heating applications.

Product Introduction

How it works:

1)Connect with pressure water tank and workstation. Water is circulated through the header via intermittent pump cycling. Each time the water circulates through the header , the temperature is raised by 5-10℃ . Throughout the day , the water in the tank is gradually heated.
2)Solar absorption : solar radiation is absorbed by the solar tubes and converted into heat.
3)Solar heat transfer:heat pipes conduct the heat from the solar tube up to the header pipe.

Model Name
ADL-FP
Water production in sun day
70~100kg/m2
Water temperature in sun day
50-90 centigrade degree
Maximum working pressure
1.2Mpa
Absorption rate of heat-absorbing coating
95%±2%
Emissivity of heat-absorbing coating
4%±1
Glass transmittance
>92%
Highest working temperature
120-170 centigrade degree
Size of input and output
G3/4
Material for heat-absorbing
TU1
Material for water pipe
TU1
Material for frame
Space aluminum-magnesium alloy
Color and artwork for frame
Completely closed (white,silver,bronze,green)
Useful life
20 years
Product Parameters
Product Model
Collector Qty.
Tank (L)
Absorbing Area (m2)
Weight (KGS)
Dimension (L×W×H)
Qty. per 20FT/40FT/40HQ
ADL-FP-1
1
100L
2
52
1530*1100*1680
58 / 123 / 156
ADL-FP-2
2
200L
4
87
1530*1340*1680
34 / 75 / 93
ADL-FP-3
3
300L
6
127
1530*1580*1680
25 / 52 / 62
Product Details Show
Why Choose Us

About us

1, the company professional to do solar water heaters.

Equipment & technology

2, first-class equipment and advanced technology.

Service

3, stable product quality , supply, the good faith management

Product Processing
Product Packing
Main Products

non-pressurized solar water heater ADL-6028

Mid. Order: 5sets

more quatities, more cheaper

FOB Price: US $ 75-192/set

stainless steel non-pressurized solar water heater ADL-6038

Mid. Order: 5sets

more quatities, more cheaper

FOB Price: US $ 86-279/set

compact pressurized solar water heater ADL-CP

Mid. Order: 5sets
more quatities, more cheaper FOB Price: US $ 197-517/set

pre-heated copper coil solar water heater ADL-PH

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 146-367/set

heat pipe solar collector ADL-SC

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 126-304/set

split pressurized solar heating system ADL-SP

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 200-976/set

FAQ

Contact Details

https://www.alibaba.com/product-detail/Flat-Plate-Solar-Panel-Water-Heater_1502091533.html





instant electric shower water heater/instant shower heater

Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Certification:
CB, CE, EMC, RoHS
Housing Material:
Plastic
Capacity:
Instant
Power (W):
5400
Voltage (V):
220
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
SH-05
Name:
Bathroom Electric Shower Water Heater
Product name:
instant electric shower water heater
Color:
Customer Require
Item:
Easy Installation
Use:
Shower Room
Function:
Heat Cold Water Quickly
Heat Source:
Electricity 110v or 220v
Application:
Bathroom shower
Feature:
Wall Mounted Electric Portable Water Heater
Usage:
Electric Shower Water Heater Tankless Electric Water Heater
SupplyAbility:
5000 Piece/Pieces per Quarter Urgent order provide overtime production
Packaging Details
shower heater

ploy bag

Package use clients’ design or requirements
Port
Ningbo/Shanghai/Yiwu/Guangzhou, China
Lead Time
:
Shipped in 7 days after payment

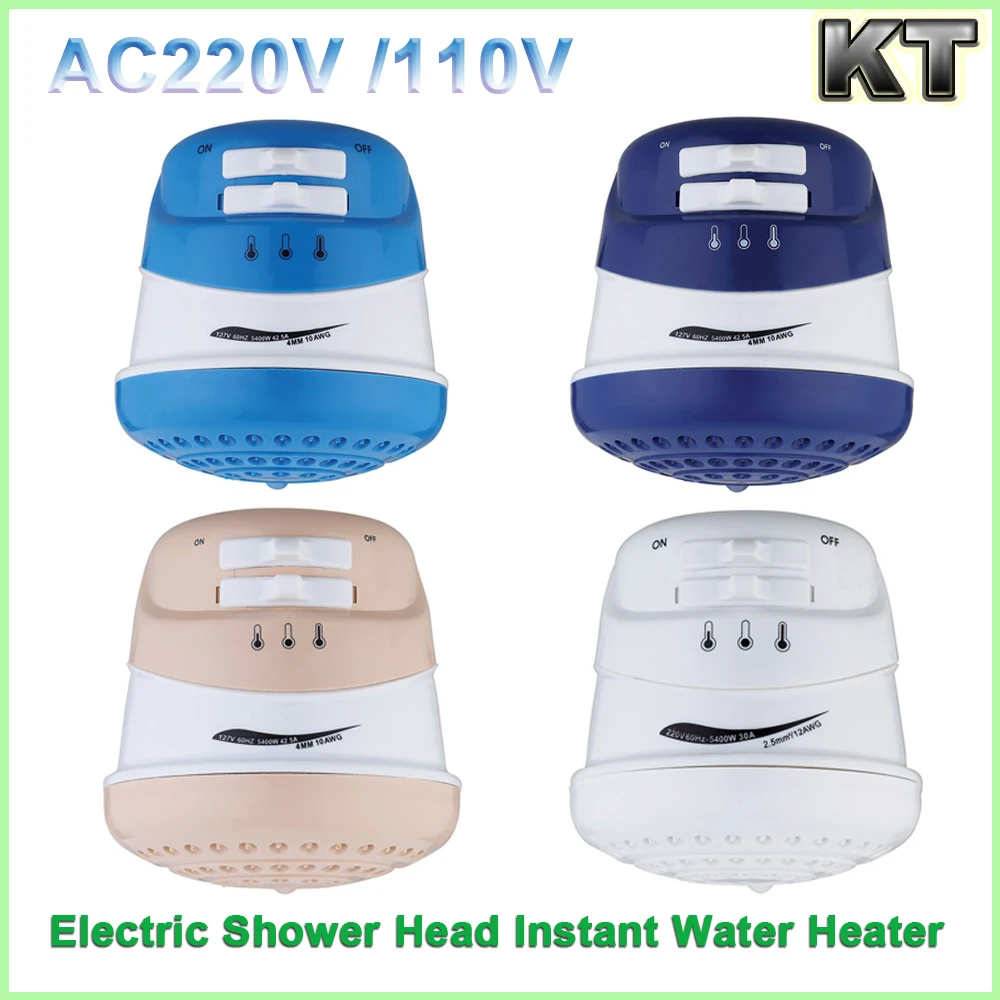

instant electric shower water heater/instant shower heater

Product Description

 instant electric shower water heater/instant shower heater

 TECHNICAL PARAMETER



Input power 220V/110V/127V Heating temperature 30°c-60°c
Rated frequency 50Hz/60Hz IP Class IP24
Rated power 3000W~5400W Grounding terminal YES
Air switch 25A/40A Hose and hand shrink YES
Wire Dia. 2.5MM2/12AWG Working pressure 0.02MPa-0.4MPa
4MM2/10AWG
6MM2/8AWG



Advantages:

1) Easy installation and removed.
2) Excellent self heating function.
3) Heating controlled automatically by handle switch.
4) Water saving nozzle, easy to install and clean.

5) Durable heating

6) Function of mixer: mixer cold water and hot water.

7) Manual installation : Easy and simple to be installed

8)With multi-points electric equipment Protection

9) Competitive price with good after sale service.

10) Quality-assurance and good service.



Pure Copper contactor for assure long life:

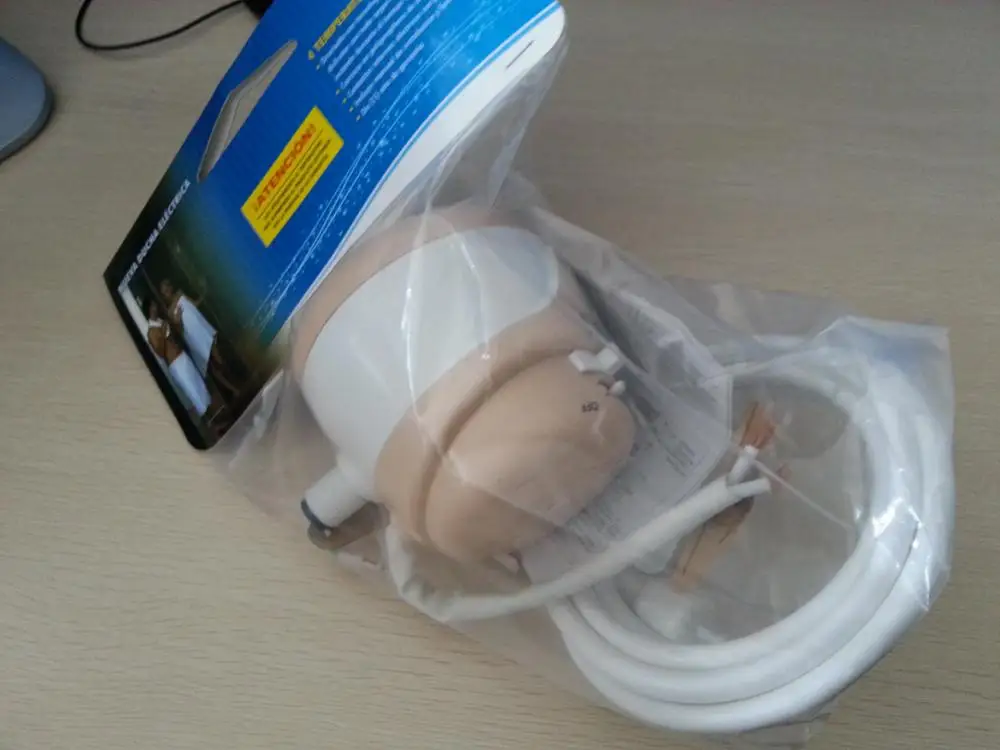

Packing:

1pc/poly bag,    24pcs/ctn

Ctn size:68×49.5×29cm

N./G. weight: 11.5/14.5kgs

Packing:

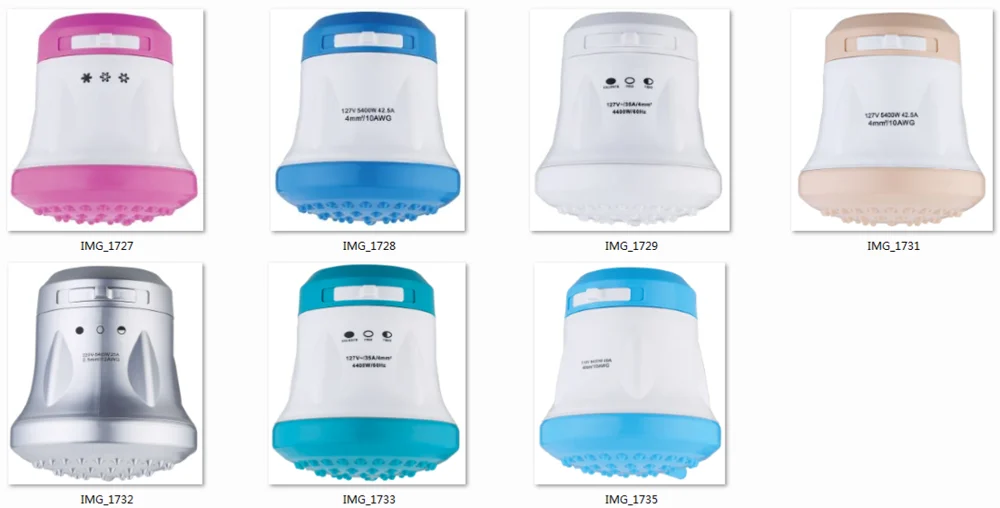

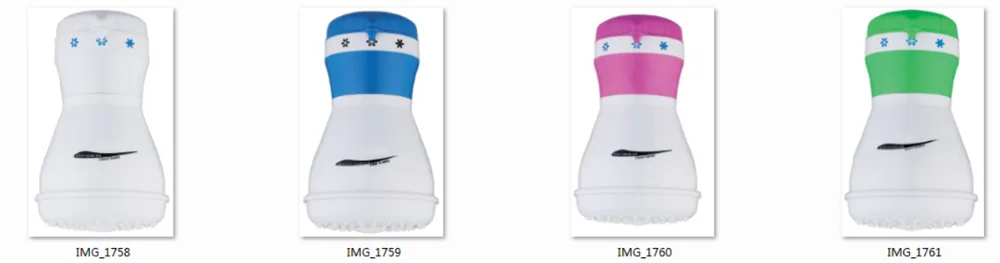

Other popular model:



Detail information pls visit here: Electric Instant Tankless Shower Water Heater

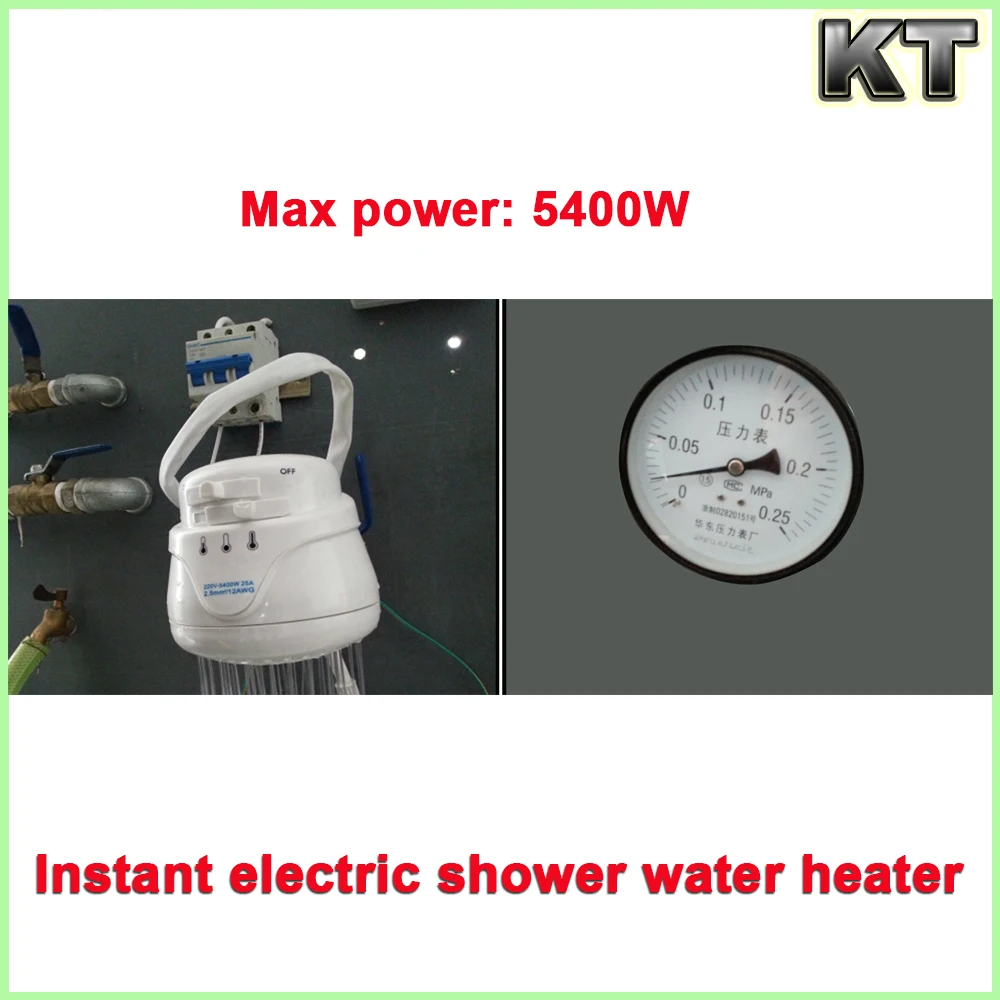

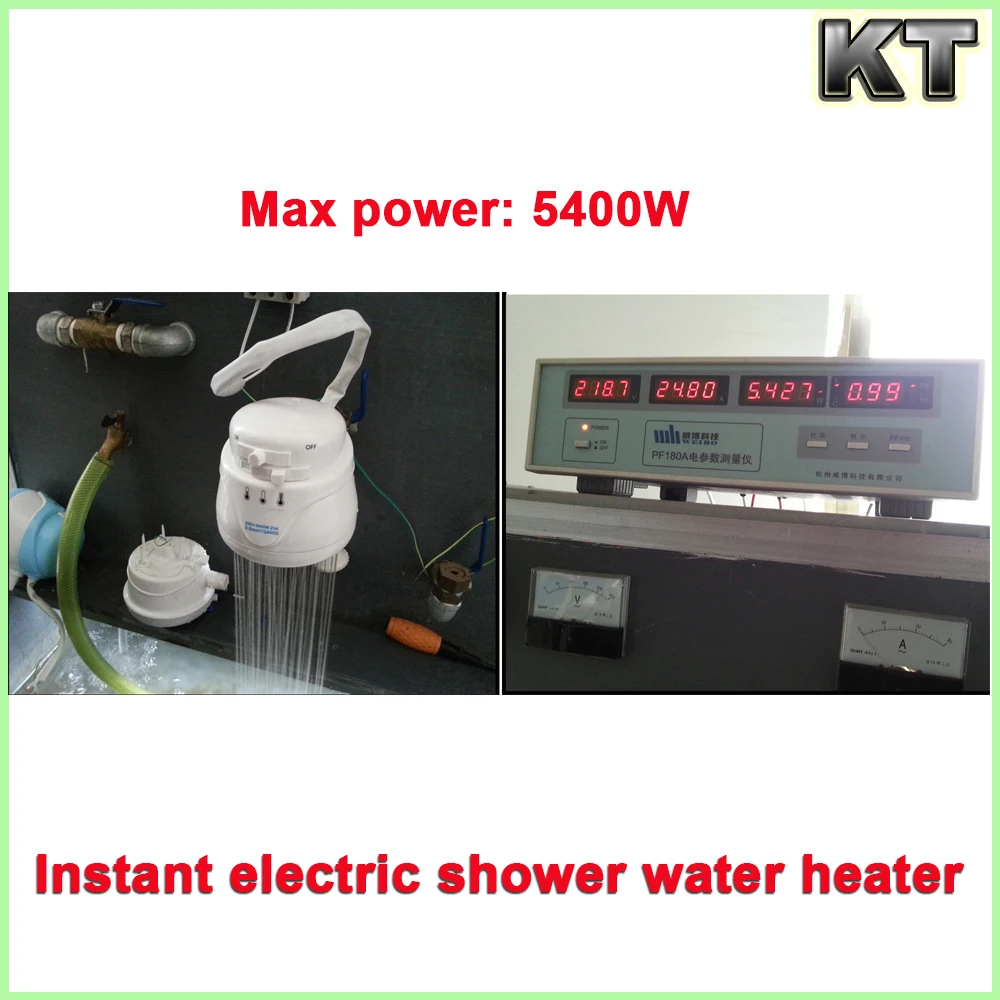

Testing



Optional inner parts and extra parts:

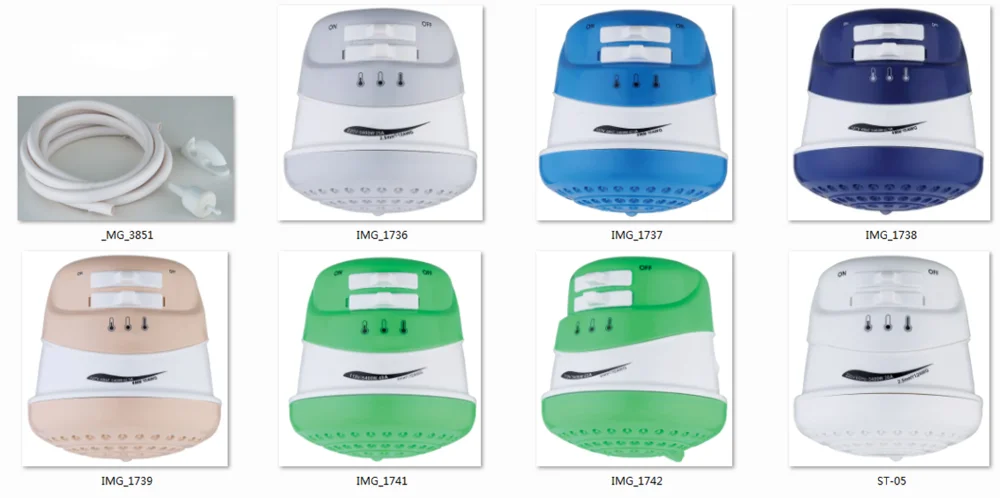

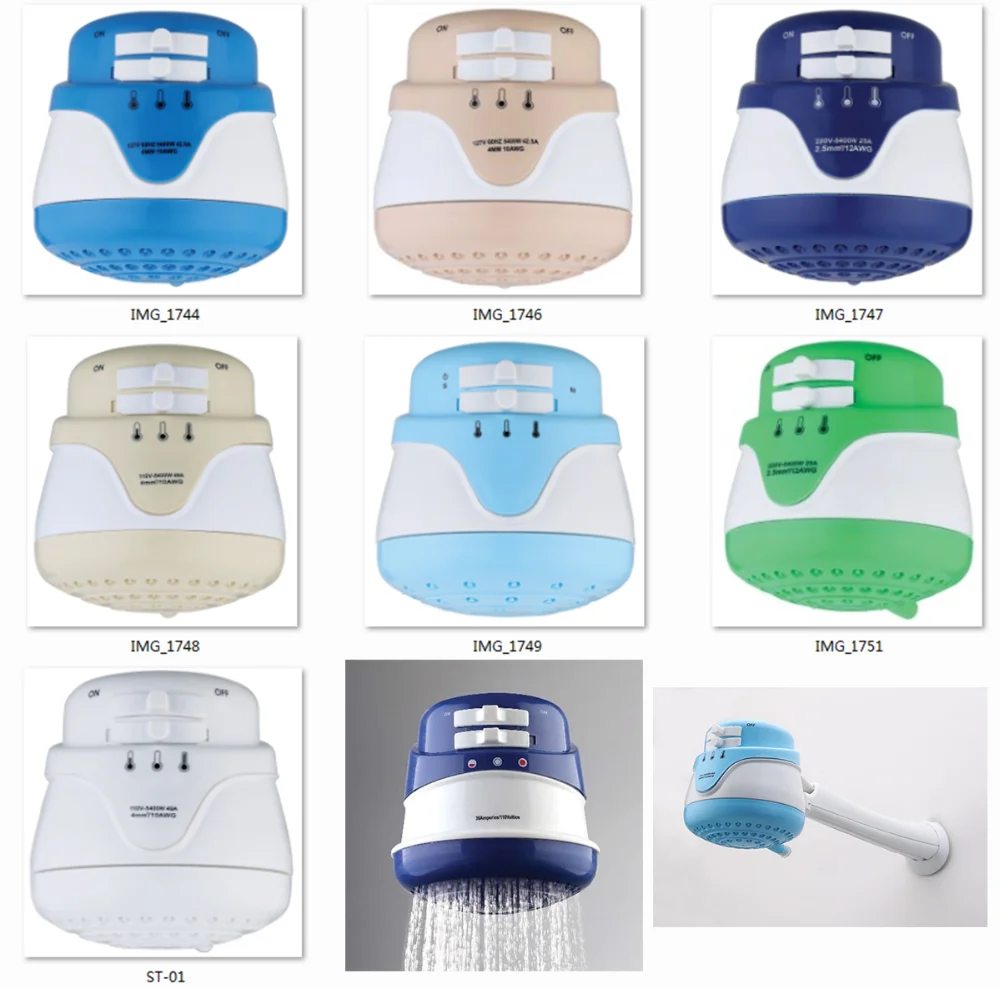

Other models and colors:

Terms and Service

1. Trade terms: FOB, 2CIF, CNF

2. Payment terms: T/T or L/C, Western Union.

3. Loading port: Ningbo or Shanghai Port

4. MOQ: 300pcs, sample order is also available

5. Package: Customized color box

6. Delivery: 20-35 days after confirmed package



Shipping Service

We can arrange you transportations, we have our own shipping and express company, or we can use your forwarder.



Main Markets

 North-America , Middle-east, European, etc.



 Warranty

 One year warranty from the date after received our goods.



Our Services

Your inquiry related to our products or prices will be replied in 12 hours.



FAQ

Q: Can I get sample order?

A: Yes, we would like to get your sample order for testing our quality, any sample are acceptable.



Q: How do you ship the goods and how long it will take?

A: We normally make shipment by UPS, Fedex, TNT or DHL, which usually takes about 3-5 working days.



Q: Do you acceptance LOGO printing on products and package?

A: Yes, for mass order, we accept your LOGO on products and package, but for sample will be confirmed with each other.



Q: How about your guarantee?

A: Normally we give you one year warranty.

https://www.alibaba.com/product-detail/instant-electric-shower-water-heater-instant_60388242712.html





WATER HEATER

Place of Origin:
Izmir, Turkey
Brand Name:
GUNER
Model Number:
GR 5027
Certification:
CE
Product name:
220 VOLT INSTANT WATER HEATER
Material:
ABS
Voltage:
220 Volt
Power:
3500-7250 WATT
Color:
White
Function:
Hot Water
Heat sources:
Electric Heater
Description:
FAST WATER HEAT
Name:
INSTANT WATER HEATER
Packaging Details
IN A GIFT BOX

6 BOXES IN A 1 CARTOON COLI

Port
IZMIR
Lead Time:
15 DAYS

https://www.alibaba.com/product-detail/water-heater-electrical_50037077152.html

MINI combi gas boiler

Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Housing Material:
Stainless Steel
Certification:
CE, ISO9001
Power (W):
28000
Voltage (V):
220
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Robello
Model Number:
L1PB
display:
LCD
function:
combination
cover:
stainless steel
key words:
MINI Italian gas combi boiler
Packaging Details
foam corner,plastic bag,Carton
Port
Shanghai
Lead Time
:
25 days

Robello Italian mini gas combi boiler

Our features:

1.Italian Technology,European standard

2.Qualified parts from China or imported

3.Three times testing approved

4.Competitive price with export experience

5.Training and technical service



https://www.alibaba.com/product-detail/MINI-combi-gas-boiler_60026633396.html





Vacuum Tube Solar Water Heater

Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
galvanized steel
Certification:
CE, ISO9001:2008
Capacity:
350
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Sunflower Vacuum Tube Solar Water Heater
Model Number:
SFA series Vacuum Tube Solar Water Heater
Accessory:
Immersion heater
Max water temperature:
100 degree
Min working temperature:
-10 degree
Max capacity of water flow:
70 degree, 40L/ hour
Solar tubes quantity:
20 tubes
Hailstone resistance:
25mm
Name:
Vacuum Tube Solar Water Heater
Packaging Details
Vacuum Tube Solar Water Heaters are put into cartons firstly.The samples are loaded into the plywood boxes.For the FCL goods,cartons can be loaded into the container directly.solar water heater manufacturer
Port
Shanghai, Ningbo, Shenzhen, Qingdao etc
Lead Time:
Shipped in 4 days after payment
Product Description

Compact Non Pressure Solar Water Heater

It is a non-pressure solar water heater system, which converts solar energy into heat energy and stores it in the insulated water tank. It is a natural circulation that relies on its own gravity to drain out of water from tank. As the tank can not bear any pressure so it is a open type solar water heater and generally also known as low pressure solar water heater as well. Due to its convenience on installation and daily use, low cost, as well as to meet the hot water needs of normal households, this solar water heater is currently the popular product in the market.

Product Advantages

1. Perfect design, very suitable for family use.
2. The use of natural circulation, 100% solar energy and do not need to run cost.
3. Solar collector adopts a double-layer vacuum glass tube, high thermal efficiency and durable service life.
4. The use of plug-in connection between the solar collector and insulation water tank and very easy to install.
5. Parts with low cost, no maintenance and no expensive maintenance costs.
6. The use of food-grade stainless steel SUS304 manufacturing barrels, no pollution and no corrosion, to keep water quality clean and sanitary.
7. Using ultra-thick polyurethane insulation, a long time to keep the tank temperature constant.
8. Can be combined with the use of electricity, gas and other alternative energy.

Specification

We manufacture system with capacity from 80L to 360L as usual with technical data below. 150L, 200L is the hot selers in the market, we can recommend suitable model size according to your number of families

Product Structure

A complete set of solar water heater mainly includes three parts, tank, glass vacuum tube and brackets

Solar vacuum tube (SFVA5818)

Solar vacuum tube by AL/N/AL coating efficiently absorbs solar energy and converts it into usable heat, adopting the vacuum technique between the double-layer glass, which can effectively prevent the loss of heat.

Solar heat storage water tank

The solar water tank barrel adopts food grade stainless steel SUSU304 material, good corrosion resistance, safe, non-toxic and no pollution. To protect the family with water safety and good health.
Solar water tank with automatic argon arc welding and argon double protection can effectively prevent the surface oxidation. Strict measures that control welding process can better protect SUS304 crystal structure not being destroyed. The service life of the barrel is more than 15 years.
Solar water tank with polyurethane insulation, good process and 55mm thickness, to ensure that the temperature drop of hot water is less than 2℃ within 12h.

Bracket
The bracket installation of solar water heaters through a professional design of structural mechanics, which is not only solid and safe, but also easy to install. It’s suitable to all kinds of roof structure and form, such as flat roof, sloping roof, tiled roof, metal roof and so on.

System Diagram
Optional Accessories

Water supplier
Function: to help add water into tank automatically.

Controller

The main function of controller is to show water temperature and water level inside the tank and at the same time, they control electromagnetic valve and realize to add water into tank intelligently..

Magnesium rod
Magnesium’s chemical properties is more lively and it has priority and corrosive substances chemical reaction so it can be effective corrosive substances in the barrel of the corrosion, to extend the life of the tank. Especially in high hardness water areas, we should often replace the magnesium rod.

Electric heater
Electric heating as a standby heating method, it works to heat water in rainy days or in case that hot water is not enough.

Installation Cases

https://www.alibaba.com/product-detail/Vacuum-Tube-Solar-Water-Heater_509333562.html

Split Type Air To Water DC INVERTER Heat Pump, hot water heating/cooling,ErP EN14825 Energy Lable, A++

Type:
Air Source Heat Pump, DC Inverter Air to Water Heat Pump Heater
Installation:
Wall Mounted
Storage / Tankless:
Storage
Housing Material:
Epoxy polyester painted galvanised stell
Use:
Floor heating, Radiator, Bathroom, Kitchen, DHW
Certification:
CE, RoHS, CE, RoHS, EN14511
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
KS**-DC
Color:
White
Heating capacity:
5-25KW
Function:
room heating, room cooling, air heating, air cooling, hot water
Power supply:
380V/3PH/50HZ or 220V/1PH/50HZ
Green refrigerant:
R410a
Heat exchanger:
GEA/SWEP Plate Heat Exchanger
Compressor:
Sanyo/ Hitachi
Optional:
Heating & Cooling, Remote controller, Multi-language
SupplyAbility:
600 Set/Sets per Month (Specialized tech, Economical price, Reliable quality)
Packaging Details
1. Whole set unit is packed nicely in a PE bag. Packing by Anti-collision protection + 5 Layer carton + wooded Case (For LCL only). 2. Spare parts & instruction sealed in the pack. 3. Customized packing is available. 4. We are always working hard on the most reliable packing in order to help you get the Perfect products.
Delivery Time
Shipped in 35 days after payment
Port:
SHUNDE; GUANGZHOU; SHENZHEN
Lead Time
:
Shipped in 35 days after payment











DC INVERTER R410A AIR TO WATER 5-25KW   (split type)

  • Designed as Split Type , Indoor Unit and Outdoor Unit be Connected by Copper pipe,Installation With Simple,Flexible and Conveniently ,The Indoor Unit can be Installed in Kitchen, Bathroom or basement, Ensuring less Energy loss.
  • Inside unit include: LCD controller, Three Way Valve, Flow Switch, WILO/Grundfos Water Pump,larger GEA/SWEP #316 Plate Heat Exchanger and inside connection; with Remote Control Function(optional), different Control Languages.
  • Outside unit with DC inverter R410a, Electrical Expansion Valve, Compressor Heater, Bottom Heater,  high-efficiency Compressor, larger Blue hydrophilic aluminum fin Evaporator, Guard, Double speed Fan Blade, Four Way Valve Reverse Defrosting, with Lower noise level.

The performance has been very reliabel and the Scop is very high. We have got the testing report from TUV for EN14825and EN 12102, also Erp.



A++ for KS150-DC to 2019 year,  SCOP: 4.12,  Low noise level









WITH ENERGY PRICES SOARING

The cost of heating using traditional fossil fuels has increased 100% since early 2006 with costs continuing to rise as fossil fuel supplies become even more scarce. Traditional heating systems like boilers use fossil fuels, making them an expensive and non sustainable option for the environment. Three quarters of the heat generated by the SERO E-STAR air source heat pump system is free of charge and maintenance is minimal, offering the perfect solution for home heating and hot water.





WHICH HEATING SYSTEM TO USE?

There are several different types of system to provide heating in your home and E-STAR is compatible with all of them. The selected system can simply be connected to the E-STAR unit.
Below are examples of some of the most commonly used heating emitters:



Our system have more advantage in defrosting.

There are 2 pieces additional electrical hearters in outdoor unit. One is compressor heater, the second one is buttom heater. They are very helpful to defrosting.











Indoor unit



Model KS50-DC KS70-DC KS90-DC KS120-DC KS150-DC KS200-DC KS250-DC
Function Heating only Heating only Heating only Heating only Heating only Heating only Heating only
Dimensions WxHxD mm 450X550X255 450X550X255 450X550X255 450X650X255 550X650X255 600X730X400 600X730X400
Weight kg 18 19 22 27 32 50 55
Leaving water temperature range heating °C 20-60
cooling °C 5-35
Hot water °C 20-60
Water three way valve Yes
Heat exchanger Stainless steel plate
Water pump Yes
Shell material Epoxy polyester painted galvanised steel

Additional electrical heater

(KW)

2 2 2 3 3

(a)3kw–0nly one piece E-heater; (230V/50Hz/1Ph)



(b)3kwX3=9kw–Three pcs E heater ( 400V/50Hz/3Ph or 230V/50Hz/3Ph)

(a)3kw–0nly one piece E-heater; (230V/50Hz/1Ph)



(b)3kwX3=9kw–Three pcs E heater ( 400V/50Hz/3Ph or 230V/50Hz/3Ph)

Power supply(V/Hz/Ph) 230/50/1 *230/50/1   *230/50/3    *230/50/1  *230/50/3



* Standard model is heating only.Cooling and heating is optional





Outdoor unit



Model KS50-DC KS70-DC KS90-DC KS120-DC KS150-DC KS200-DC KS250-DC
Dimensions WxHxD mm 840x590x290 840x700x315 880x780x360 830x1230x310 930x1250x310 1110x1850x425 1110x1850x425
Nominal Capacity heating kW 5.60 7.41 9.32 12.94 14.80 19.78 24.43
cooling kW 5.12 6.70 8.53 11.20 13.90 18.1 22.3
Nominal input heating kW 1.31 1.77 2.27 3.17 3.60 4.98 6.18
cooling kW 1.87 2.42 3.02 4.13 5.10 6.5 8.12
COP 4.27 4.19 4.11 4.08 4.11 3.97 3.95
EER 2.74 2.77 2.82 2.71 2.73 2.78 2.75
Compressor type Rotary Rotary Rotary Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1

2

(one is on/off type, Another is inverter)

2

(one is on/off type, Another is inverter)

Brand Sanyo Sanyo/ Panasonic Sanyo/ Panasonic Sanyo/ Hitachi Sanyo/ Hitachi Hitachi Hitachi
Operation ambient range °C -20- 43
Sound pressure level heating dBA 51 52 54 56 56 58 58
cooling dBA 52 53 54 57 57 60 60
Weight kg 48 52 68 90 110 205 210
Refrigerant charge R-410A kg 0.82 1.15 1.4 2.5 3.4 5.3 5.8

Power supply

 * optional

V/Hz/Ph 230/50/1 *230/50/1    *230/50/3   *400/50/3 *230/50/1    *230/50/3   *400/50/3 *230/50/3  *400/50/3 *230/50/3 *400/50/3



* Measurement condition:A7/W35 (heating mode), A35/W7 (cooling mode).









* Get more details please Email to us or contact our company.





https://www.alibaba.com/product-detail/Split-Type-Air-To-Water-DC_60050412790.html





Olderposts

Copyright © 2019 FabricatingChina

Up ↑
