instant electric heating water faucet

Storage / Tankless:
Instant / Tankless
Installation:
Freestanding
Certification:
CE
Housing Material:
Plastic
Capacity:
Instant
Power (W):
2500
Voltage (V):
220
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
OEM
Model Number:
ZY-H03
Color:
White
Function:
Heat Cold Water Quickly
temperture display:
have
Supply Ability:
20000 Piece/Pieces per Month
Packaging Details
color box with foam then outer carton
Port
NINGBO

instant electric heating water faucet

1. flash heat

2. stainless steel heating tube,healty and long life

3. digital temperture display

4. Certificate: CE

5.type: deck mounted or wall mounted













110V / 240V Centon Small Bathroom Wall Mounted Instant Electric Shower Tankless Hot Water Heater

  • 1-9 Sets
    $65.00
  • 10-99 Sets
    $60.00
  • 100-499 Sets
    $55.00
  • >=500 Sets
    $45.00
Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Certification:
CB, CE, GS, RoHS, SASO, CCC
Housing Material:
Plastic
Capacity:
Endless
Power (W):
6500
Voltage (V):
220
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ASHIBETTER
Model Number:
LK-65
Item name:
Water Heater
MOQ:
1 pieces
Display:
Led digital Display
Water pressure:
0.02 ~ 0.6MPa
Protection Class:
IPX4
Current (AC):
16A-32A
Matched wire length:
1. 1M
Color:
Customer’s
Service:
OEM/ODM
Warranty:
12 Months
Selling Units:
Single item
Single package size:
37X12X28 cm
Single gross weight:
2.4 kg
Package Type:
Product Size(W*D*H)mm: 207*60*335
Inner box(W*D*H)mm: 365*115*280
Outer CTN (W*D*H)mm:605*380*370
Carton Qty:5pcs/CTN
N.W:2.4KGS
G.W.3.6KGS
20 FCL:1125pcs
40FCL:2325pcs
Picture Example:

package-img

package-img
Lead Time
:
Quantity(Set) 1 – 10 11 – 100 101 – 500 >500
Est. Time(days) 2 5 8 To be negotiated
Description
Model
LK-65
Type
Tankless, instantaneous heating
Display
Touch screen, LED digital display
Power
2KW-6.5 KW (Different power can be customized)
Voltage
AC220V-240V/AC110V-130V
Rated Current (AC)
16A-32A
Water pressure for working
0.02 – 0.6MPa
Water temperature
35-55℃ free adjustable
Waterproof class
IPX4
Heating element material
Stainless steel + Aluminum die-casts
Certification
CE CB ISO ROHS CSA SASO CCC SGS
Matched wire length
1.1M
Product dimension
207*60*335mm
Net weight
2.4KGS







Feature
1).2 seconds preheating.
2).Inexhaustible hot water, tankless water heater.
3).No water scale.
4).Easy installation.
5).Energy conservation, thermal efficiency up to 99%.
6).1-6.5 kW variable power allows you choose your appropriate power.
7).Stable water, stable temperature. And both can be set via touch screen.
8).Burned protection, over temperature protection, ground protection. You can touch the heating elements while heating.
9).Water and electric department separation.
10).IPX4 Class water proof.
11).Small and exquisite, with dimension 207*60*335mm.
12).Fashion design, OEM and ODM are supported, SKD is available.
13).All the listed price is only for reference,for the latest price please contact us directly.
Product list
About us
Contact us
FAQ







Freestanding Solar Panel Electric Hot Stable Pressurized CE 300 L Home Solar Water Heater System DHW water storage tank

Type:
Flat-Plate, Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Split
Installation:
Freestanding, Freestanding
Housing Material:
Stainless Steel
Certification:
CE, WaterMark, Solar Keymark
Capacity:
300
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
M&T
Model Number:
MFSC-2C 300L
Inner tank:
Stainless Steel Duplex
Color:
Customization
Certificate:
CE & Water Mark
Source:
Solar & Electric
Absorber area:
2 square meters
Volume Choices:
150 L, 200 L, 300 L
Item:
DHW water storage tank Solar electric Water Heater
Panel:
Flat Panel
Supply Ability:
3000 Unit/Units per Month DHW water storage tank Solar electric Water Heater
Packaging Details
Carton box for container order; Carton box plus plywood package for LCL order
Port
Huangpu
Product Description

Customization



Certifications



Cooperative Partners

Exhibition

Contact us







Hot Water Geysers

Place of Origin:
Sri Lanka
Brand Name:
Mega Heaters
Model Number:
NA
Supply Ability:
100 Unit/Units per Month
Packaging Details
As per customer request
Port
Colombo
Lead Time
:
7~30
Product Description



Appliances that provide a continual supply of hot water are called water heaters, hot water heaters, hot water tanks, boilers, heat exchangers, geysers, or calorifiers.

Company Information



Mega heaters (PVT) Ltd is a manufacturer of industrial and immersion heaters and was established in 1976.

In the initial years the company has focused on manufacturing of immersion water heaters for the use of house hold as it only focused on the consumer market. Over the period of time with our experience and the recognition we received, the company has moved in to the industrial sector and finally grown to become the industry leader in manufacturing Industrial Heating technology.

With expertise and the new technologies, the company has diversify of its product range from immersion water heaters to industrial heating elements including, oven elements, oil heaters, air heaters, cartridge heaters, steam boiler elements, defrost heaters, heating plates, mica strips and band heaters, tubular heaters, kettle elements, water boilers, warmers, milk warmers milk pasteurizers, rice boilers, temperature controllers, and thermocouples etc..

From our entroprinial spirit, which began in 1976 as a self-motivated project and the brand name MEGA was sealed. The major scope of activity of Mega Heaters (Pvt) Ltd was the production of immersion and industrial heaters.

The heaters manufactured by Mega are giving a series of benefits to its own customers and the end users of the products. As our products are made out of the world renewed raw material using latest technology they are of the characteristics of reducing heat losses, Damage resistant, and Eco friendly. The designs always user friendly which gives additional benefits to the users.

Managing Director’s word of mouth is “Customer is the king of Mega” which proves and shows the way the after self-services gives for the customers and the benefits which was allocated only for mega customers. Free electrical installation and the warranty is some of them.

For over 30 years, MEGA has and continues to be a name synonymous with immersion heaters in Sri Lanka. Besides a full line of water heaters, are our core product, and our MEGA range of products has expanded to include products for industrial and commercial applications such as all kind of industrial heaters now manufacture under Mega brand.

Our Research & Development department plays a key role in bringing new products and adding product features in to our existing product range making us more completive in the market. These new and highly innovative proprietary products have strengthened the company’s market share and keep us ahead of our competitors.

Our corporate headquarters and modern manufacturing facilitated factory is located in no 691. Station Road, Kottawa, Pannipitiya. We employ around 150 workers of different categories. Our manufacturing plant is well equipped and our staff specially recruited and trained to maximize productivity and economy to achieve our high standards and set to meet customer requests. We strive to provide the best possible service, technology, knowledge, and facilities for the benefit for our customers and serve the country’s economic development as a proud Sri Lanka company.







automatic horizontal gas hot water boiler for home appliance

Storage / Tankless:
Storage
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, ASME,ISO,SGS
Voltage (V):
380
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Wilford boiler
Model Number:
CWNS
OPERATION:
AUTO
efficiency:
high
safety:
yes
green:
yes
Supply Ability:
10 Perch/Perches per Month
Packaging Details
plywood case,steel frame,carton,naked
Port
Shanghai
Lead Time
:
30 working days

automatic horizontal gas hot water boiler for home appliance

Product



  1. CWNS series of hot water boiler is three return trip back all wet big chamber boiler shells.
  2. Furnace big, high radiate,three return design, combustion air is full, high-efficiency heating surface.
  3. More than 90% thermal efficiency. Intelligent, automatic control, with automatic temperature regulation, over-temperature standby.
  4. Burners are used  by importing, pressure spray, burning completely, low noise. low Nox.
  5. Confined by connecting structure, safe, reliable, long service life.Expansion of water  testing through the atmosphere, atmospheric pressure operation, there are no all potential safety problems.
Technical parameters



Type

CWNS0.7-95/70-Y.Q

CWNS1.05-95/70-Y.Q

CWNS1.4-95/70-Y.Q

CWNS1.75-95/70-Y.Q

CWNS2.1-95/70-Y.Q

CWNS2.8-95/70-Y.Q

Project

Unit

Rated heat

MW

0.7

1.05

1.4

1.75

2.1

2.8

total heat

104kcal

60

90

120

150

180

240

Rated working pressure

MPa

 ordinary Pressure

                            Fuel consumption

Light diesel oil

kg/h

65

97.5

130

162

195

260

Natural gas

Nm3/h

70

105

140

175

210

280

Liquefied gas

Nm3/h

30

45

60

75

90

120

Pipeline gas

Nm3/h

170

255

340

425

510

680

Overall size

Length

mm

3020

3230

3650

4100

4550

5600

Width

mm

1700

1750

1820

1890

1930

2000

High

mm

1880

1960

2050

2100

2150

2270

Weight

kg

2450

2780

3500

3860

4520

6300





Company Information





Certificates



Packaging & Shipping



Our Services



1.1-year warranty with full life after-sale services

2.Powerful technical support and services

3.Different voltage available

4.Fast respond with 10 minutes

5.Good after-sale service offered

6.Create you long-term profits



Contact



                Welcome to visit Zhangjiagang Wilford!







Monoblock heat pump 5KW

Type:
Air Source Heat Pump
Installation:
Wall Mounted
Storage / Tankless:
Storage
Housing Material:
galvanized steel
Use:
Outdoor
Certification:
CB, CE, EMC, GS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Audsun
Model Number:
KF100-X
name:
air to water heat pump
color:
white/gray
Evaporator material:
gold fin evaprator
field:
bathing hot wate
optional housing:
SUS304 stainless steel
Supply Ability:
2000 Unit/Units per Month
Packaging Details
Hardboard Carton packing meet export standard
Port
Shunde /Guangzhou /Shenzhen



 Contact Us:



Guangdong Audsun Electric Technology Co.,Ltd

Add:No.5 Fuxin Road ,Fu An Industrial Zone,Leiliu Town, Shunde District, Foshan City ,Guangdong Province ,China

Tel:0086-757-25528371  |     Fax:0086-757-25528369   |  Facebook:@Audsunheatpump





Product Description

 **Stainless steel SUS304 Casing
**Panasonic Compressor
**High efficiency Tube Shell Type Heat Exchanger
**Fin tube Type Gold color Evaporator
**Heating or Cooling function reverse
**Auto Defrost
**Inteligent Controller
**Timer ON/OFF function

Audsun Domestic Shower Heat Pump Water Heater Specification
Model Number KF70-X KF100-X KF140-X KF200-X
Refrigerant R410A/R417A/R22
Compressor Brand Panasonic /Rotary
Testing Condition 1. Dry-bulb temperature 20℃
2. Wet-bulb temperature 15℃
3. Water temp. rises 40 C deg.
Features 1. Environment Temp. for Working: -5°C to 40 °C
2. Max. Water Outlet Temp.: 60°C
3. Interior WILO Brand Circular Water Pump
Outdoor Unit Air Outlet   Side Discharge Air Outlet
Rated Heat Production Capacity KW 3.25 4.64 6.5 9.28
BTU/h 11100 15800 22100 31600
Rated Outlet Water Temp. 55
Max. Outlet Water Temp 60
Rated Water Heating Capacity L/h 70 100 140 200
Rated Input KW 0.86 1.22 1.71 2.45
Rated Working Current A 3.88 5.55 7.77 11
COP W/W 3.8 3.8 3.8 3.8
Power Supply V/PH/HZ 220~240V/1PH/50HZ
Compressor QTY Unit 1
Fan QTY Unit 1
Noise dB(a) 55
Water Inlet/Outlet Diameter Inch G¾”
Circulation Pump   Built-In Circulation Pump
Water-Refrigerant Heat Exchanger   Copper Pipe in Steel case Heat Exchanger
Outline Dimension L×W×H(mm) 750×300×510 930×360×560 1000×370×630
Packing Dimension L×W×H(mm) 835×330×520 1045×375×570 1115×375×640
Net Weight KG 38 50 55 70
Gross Weight KG 40 53 58 74



Packaging & Shipping



Model Number KF70-X KF100-X KF140-X KF200-X
Packing Dimension (cm) L W H L W H L W H L W H
84 33 52 105 38 57 105 38 57 120 38 64
Loading QTY(CTN) 20’GP 40’GP 40’HQ 20’GP 40’GP 40’HQ 20’GP 40’GP 40’HQ 20’GP 40’GP 40’HQ
172 364 364 128 264 264 128 264 264 78 168 224







Our Services



 1-Professional and diligent Audsun Export Team members , familiar with the import&export documents preparation;

2- More than 10 years experience in Audsun solar Water Heater and heat pump industry , know well of different countries and regions’ water quality;

3- Fast response on the technical questions ;

4- Manufacture heat pump main components ,secure the lead time and strict quality control;

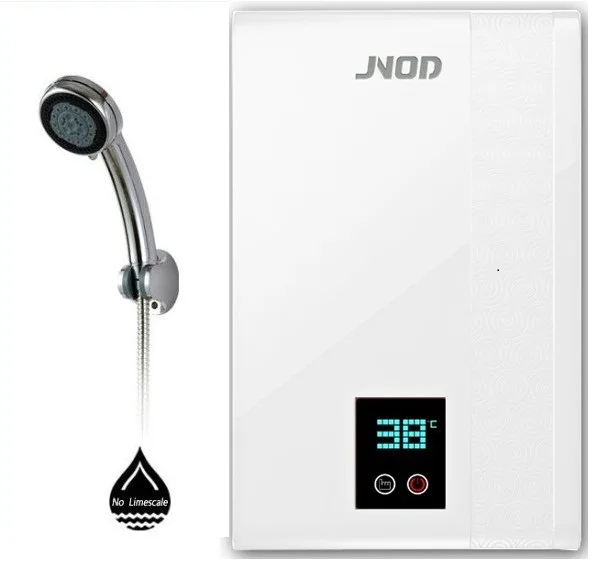

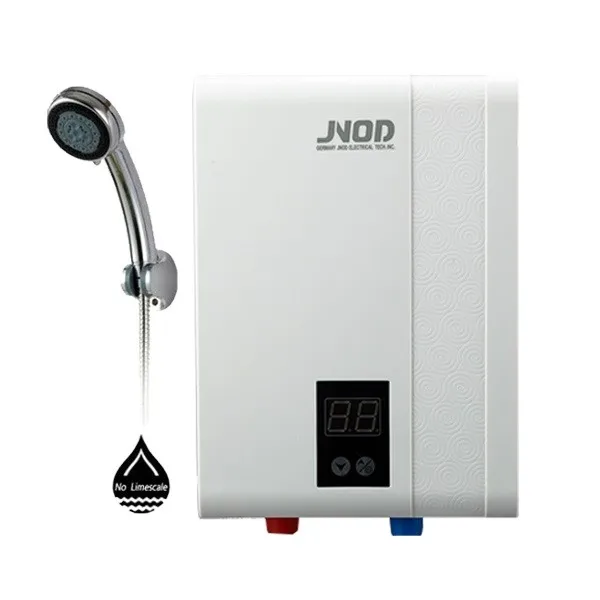

electric shower water heater wall mounted endless hot water heater for bathroom

Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Certification:
ISO9001
Housing Material:
High Strength ABS
Capacity:
Endless
Power (W):
5000
Voltage (V):
230
Place of Origin:
China (Mainland)
Brand Name:
JNOD
Model Number:
XFJ-FSA
Voltage:
220V-240V
Frequence:
50/60Hz
Power:
3500W/5000W/6500W
Temp.setting arrange:
30-55℃
Overheat protection:
60℃
Thermal cut-off:
90℃
Water Pressure:
0.02-0.6Mpa
Water Connection:
G1/2″
Safety Class:
IP25
Color:
White
Supply Ability:
50000 Piece/Pieces per Month instant water heater
Packaging Details
Carton Package

Product Size: 290*210*70mm

Inner Packing Size:360*120*260mm

Out CTN Size:510*380*280mm

4pcs/CTN
Port
Shunde, Shenzhen
Lead Time
:
15-30 working days, it depends on the quantity.

                     ABS wall mounted tankless hot water heater Electric instant water heater











Advantages:

     High strength ABS material with color painted, brushed aluminum descorative panel.

    Adopts patent enclosed loop heating system, instant for hot water with less heating loss.

    Easy installation, compact appearance.

    Automatic memory function avoid repeated operation.



Specification :

    1) Rated power: 3500W / 5000W / 6500W

    2) Rated voltage: 220-240V

    3) Frequency: 50Hz /60Hz

    4) Optional Color: White

    5) Dimension: 290*210*70mm



Features :

    1) On-demand hot water – never runs out

    2) Reduce water heating costs by as much as 50%

    3) Compact design saves space

    4) Far less likely to leak or rupture

    5) Substantially reduces risk of scalding injuries to children and elderly

    6) Maintains efficiency throughout its service life

    7) Less prone to hard water, sediment, or mineral problems

    8) Long service life!



Packing :

   1) Dimension:  290*210*70mm

   2) Outer CTN:510*380*280mm

   3) Carton Qty: 4pcs/CTN

   4) N.W./PCS: 3kg

   5) G.W./CTN: 15kg





 Technical data:







Heating element:

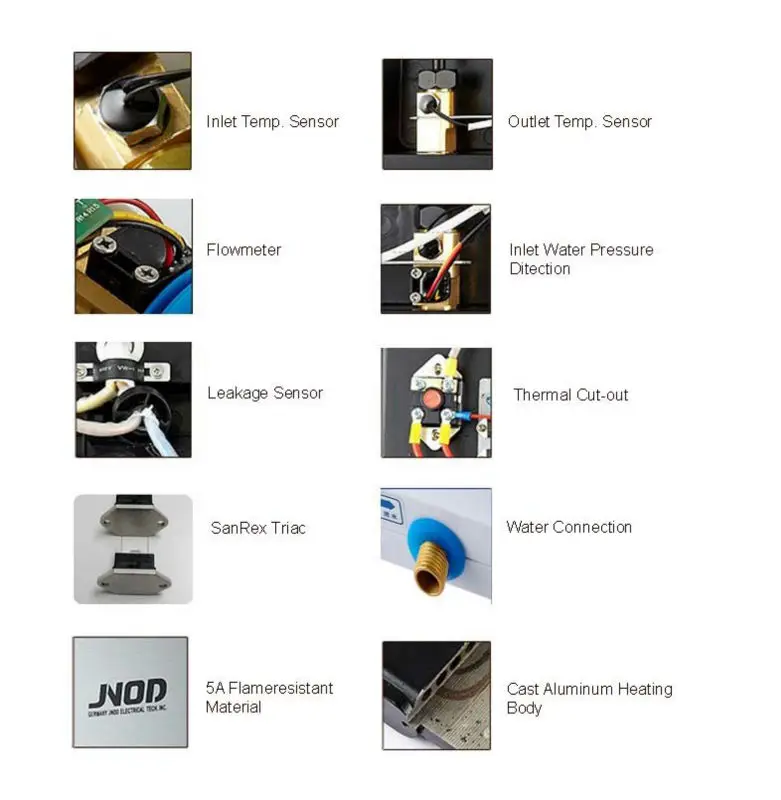

Components:



Accessories option:





Pakcing pictures:

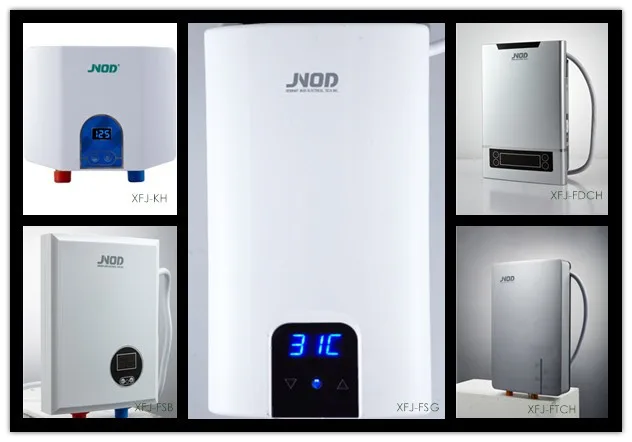

 Other Product Series:

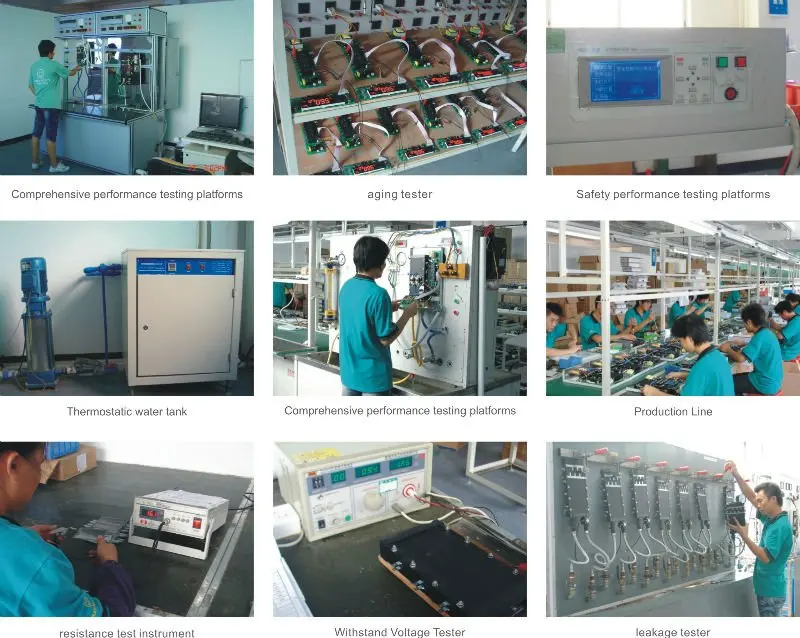

Quality Control equipment:



FAQ:
1.Q: Does your company is factory or trade company?
   A: JNOD is a factory expert in producing tankless/instant elctric water heaters, electric water faucets and electric boilers.

2.Q: Can I add my own logo on the products?
   A: Yes, but only when the order quantity reaches MOQ depends on different items.



3.Q: Are you able to design or produce new products for us?
   A: Any new design or idea are welcome, but new products need new mould to produce, the cost will be paid by buyer. We will suggest you to provide drawing to avoid any mistake.



4.Q: May I require a sample before deciding to buy from you?
   A: Welcome to buy samples for quality testing.



5.Q: DO you have any Certification for Water Heater?
   A: We have CE,CB,ErP ETL(UL499&CSA),SAA,ISO9001 Certification



6.Q: What’s the Product Warranty?
   A: Heating element is 3years .Competely parts is 1year.



7.Q: What’s your quality control system?
   A: We established a procedure to check products at all stages of
the manufacturing process-raw material, in process materials, validated or tested materials, finished goods, etc. 100% inspection in assembly lines. All controls, inspection, equipment, fixtures, total production resoureces and skills are inpsected to ensure products consistently achieve the required quality levels.



8.Q: Will you supply us the free easy damage parts?
   A: Yes, the free easy damage parts will be sent by free-issued rate based on purhase amount.



9.Q: CAN you supply us more information about Water Heater?
   A: It will be our pleasure, pls contact us to get more information.





Contact us:



24 hours online service, welcome to contact us for more information at anytime!



Please note: All the listed price is only for reference, for the latest price please contact us directly.       We are waiting for you.









240V Domestic Tankless Instant Electric Water Heater

Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Certification:
CSA, UL, ETL
Housing Material:
Stainless Steel
Capacity:
Endless
Power (W):
24000
Voltage (V):
240
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JNOD
Model Number:
XFJ-H
Color:
silver
Inlet and outlet pipe:
3/4 NPT
Material:
stainless steel outer casing, aluminum heating element
Patend heating technology:
constant temperature control
Endless supply hot water:
no need waiting
Convenient and luxury:
small ,save space
Special for North America:
central way supply hot water
Safety Class:
Class 1
Waterproof Class:
IP25
Power:
21KW,24KW,27KW
Selling Units:
Single item
Single package size:
47.5X13.5X36.7 cm
Single gross weight:
8.0 kg
Package Type:
Packing Details:

Inner Packing: PE bag+ bubble bags.

Gift box: 3 layers corrugated color box (1 unit/Box)
Out Carton: 5 layers carton(4 boxes/Carton)

Remark: We can customized color gift box/Carton according to your design base on a certain purchase quantity.

Loading: 20’GP:1000PCS, 40’DP:2000PCS 40’HQ;2120PCS

Lead Time
:
Quantity(Piece) 1 – 10 11 – 200 >200
Est. Time(days) 15 45 To be negotiated
Product Description

Main Features

1) UL 499 standard, ETL approved, NSF standard.

2) LED digital temperature display, toch screen for operation

3) Temperature display convert between Degree oF and Degree oC

4) High gloass transparent ABS with IMD technology

5) Patent heating technology, much longer service

Technology Data
Model No.
XFJ150H
XFJ180H
XFJ210H
XFJ240H
XFJ270H
Phase
1
1
1
1
1
Voltage
240V
240V
240V
240V
240V
Power
15kW
18kW
21kW
24kW
27kW
Max. Amp. Load
63A
75A
88A
100A
113A
Min. Required Circuit Breaker
2*40A
2*50A
3*40A
3*50A
3*50A
Temp. Setting Range
86-127F
86-127F
86-127F
86-127F
86-127F
Min. Wire Size(AWG)
2*8#
2*8#
3*8#
3*8#
3*8#
Active Flow Rate
0.53GPM
0.53GPM
0.53GPM
0.53GPM
0.53GPM
Water Connectors
NPT3/4
NPT3/4
NPT3/4
NPT3/4
NPT3/4
Product Size
385*260*93mm

  Product Specification

* Stainless steel out case, water splashing proof, corrosion resisting, ageing resisting
* Adopts patent heating technology- enclosed loop heating system, instant for hot water with less heating loss, noao insulation material which totally separates water from electricity
* Multi-layer structure heating chamber form a long circulating water channel, no limescale, long lifespan.
* Electricity leakage protection, anti-scalding protection, over-pressure and over temperature protection. Water and electricity isolation protection
* Direct temperature setting, automatically thermostat, the hot water temperature will be constant. Automatic memory function avoid repeated operation.
* LED display screen to show the working condition, outlet temperature. touch screen for operation
* Temperature conversion mode, the temp. display can be convert between Celsius degree and Fahrenheit degree.
* Fault auto-detection technique, the cause will be displayed automatically while failure

Detailed Images



Patent Heating Technology

Heating Material: nickel-chromium

Material of Heating Tube: SS316L
Material of Water flow channel: SS304

 Length of Water flow channel: 5.5m

Surface Thermal Load: 13.5w/cm2

Material of Out Case: Die-cast Alumium

_____________________________________________________


Control System

Control Mode: Electronic Control
Working Mode: Automatic Thermostat
Power Supply Mode: Transformer

_____________________________________________________






Out Case & Display

Out Case:  Stainless steel with wiredrawing

Operation Model: Touch Screen

Display Screen: LED digital display

Temp. Display: degree C and degree F
Color for LED: BLUE

_____________________________________________________

Water Connectors

Material of Connector: Leed free cooper
Size of Connector: NPT 1/2″





_____________________________________________________

Certifications
Packing & Delivery
Inner Packaging
Product Size
385 (L) * 260 (W) * 93 (D)mm
Inner Box Size
475 (L) * 367(W) * 135 (D)mm
N. W.
7.4kgs (15kW, 18kW)
8kgs (21kW, 24kW, 27kW)
Product Portect Packing
Air Bag
Gift Box Material
3 layer corrugated paper
Remark
Color Packing will be free of charge base on 500pcs for each series.
Out Carton
Carton Size
570(L) * 490 (W) * 385 (D)mm
Units in CTN
4 units/CTN
G. W.
33.5kgs (15kW, 18kW)
35kgs (21kW, 24kW, 27kW)
Package Material
3 layer corrugated carton
Loading Quantity
20 ‘GP: 1000pcs

40 ‘GP: 2000pcs
40′ HQ: 2120pcs
Our Company
Equitments
Related Products

XFJ-FTCH

91.8% Response Rate

XFJ-KH

91.8% Response Rate

FC-Z

91.8% Response Rate







Home Use(TANK) 250L Pressured Hot Water Solar Geyser

Type:
Evacuated Tube
Circulation Type:
Direct / Open Loop (Active)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Stainless Steel, Stainless Steel.
Certification:
CE, RoHS, ISO
Capacity:
250
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ENSUN&OEM
Model Number:
CNP-Pressured
Product name:
Solar geyser
Use:
Home,Bathroom
Color:
Any
Logo:
oem
Size:
Custom Made
Heating System:
Thermosyphon (Passive)
Supply Ability:
3000 Set/Sets per Month Solar geyser
Packaging Details
Solar geyser.

export carton…..
Port
SHANGHAI/NINGBO

Product Description



 Home Use(TANK) 250L Pressured Hot Shower Water Solar Geyser



1.The pressurized water tank has no exhaust hole, therefore, it must bear the pressure came from tap water

and hot water,when use, the hot water comes out because of water pressure.

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressure solar

water heater tank. In this case, the water inside the tank becomes hot

3.No water in the heat pipe makes the whole system could bear pressure.





Description

Compact Pressure solar water heater

Material of out tank

0.31-0.4mm thickness color steel/ fluorine carbon steel

Material of inner tank

Food grade 1.2-1,5mm mm thickness SUS304 stainless steel

Tank insulating layer

55mm 45kg/m³ high-density polyurethane foamed

Inlet and outlet hole

Male G 1/2, 3/4

Max pressure

0.6Mpa

Solar collector tube

3.3 Borosilicate glass with N/Al coating

Thickness of glass tube

1.6mm

Vacuum tube tightness

P<=0.005 Pa

Absorption

AS=0.93-0.96(AM1.5)

Emission ratio

0.04-0.06(80C+-5C)

Idle sunning property parameters

Y=220~260m2.C/KW

Average heat loss coefficient

ULT=0.6~0.7W/(m2.C)

Bracket:

1.5mm thickness Galvanized Steel

Design of tank:

5 holes for air vent,water inlet and outlet,electric heater,Mag Rod

Welding:

Argon arc welding

Fastening pieces:

Made of stainless steel screw

Absorber area

1.125 m²

Tube quantity

12 tube 58×1,800mm with heat pipe(Dia14 x 90mm condenser)

Tank capacity

150L





1.Features:



1). Adopts the best conduction performance metal- heat pipe (copper)
2). Can be used all year round in the cold climate
3). High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in

pressurized water tank rapidly
4). The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5). No water in the tube, one tube broken don’t influence the system working
6). The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7). Dual-purpose brackets for both flat and inclined roof

8). The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came

from water level controller malfunction which could cause water flow out



2.How to choose:
Choose the item according to the capacity, and choose the capacity according to the people quantity
in your family, one adult shower need about 50 L water. Normally,50 liters is only used for one person’s shower.









hot selling products



Company Information





Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer’s side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign

trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater,

we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.



















All in one domestic air source heat pump water heater 2.8kw, 200L,with CE

  • 1 – 9 Units

    $911.00
  • >=10 Units

    $811.00
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Storage
Housing Material:
Galvanized steel
Use:
Bathroom
Certification:
CE, EMC, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Daishiba/OEM
Model Number:
DHW-28-200L
Application:
Provide sanitary hot water
Heating capacity:
2.8kw
COP:
4
power supply:
220v/1ph/50hz
water tank volume:
150L~300L
refrigerant:
R410A
Auxiliary e-heater:
1.5kw
Max output water temperature:
60C degree
Normal output water temp.:
55 celsius deree
Other features:
could work together with solar collector
Supply Ability:
1000 Unit/Units per Month
Packaging Details
Heat pump water heater

Sample: plywood

Full container order: carton
Port
FOSHAN
Lead Time
:
Quantity(Units) 1 – 1000 >1000
Est. Time(days) 25 To be negotiated

 All in one domestic air heating pump water heater

 2.8kw 150L-300Lwith CE



 Daishiba domestic hot water heat pump is one of the most economical systems to heat the water for family domestic use. Using free renewable energy from the air, the unit is highly efficient with low running costs. Its efficiency can be up to 3~4 times more than conventional gas boiler or electrical heater.

Ecological and economical heating
1) The efficient and economical alternative to both fossil fuel boilers and heating systems
2) By making use of the renewable source in the air, it consumes much less energy without direct CO2 emission

Multiple function
The special design of air inlet and outlet makes the unit with the ability for various ways of connections. With different ways of installation, the home heat pump unit can work as only a heat pump but also a fresh air blower, a dehumidifier, or an energy recovery equipment.





Compact design
Daishiba domestic hot water heat pump is specially designed for offering sanitary hot water for family use. Its extremely compact structure and elegant design are suitable for indoor installation.



Other features
1) Stainless steel tank keeps the clean water supply
2) High efficient compressor with green gas R410A

3) Electrical element available in the unit as back up, and assuring constant hot water
4) Supply Max 60C degree hot water even in extreme cold winter



 Specification- all in one domestic hot water heat pump – R410A type

TECHNICAL DATA DHW-28-100L DHW-28-150L DHW-28-200L DHW-28-250L DHW-28-300L
Heating capacity kW 2.8 2.8 2.8 2.8 2.8
Power input W 700 700 700 700 700
COP W/W 4.0 4 4 4 4
Power supply V/N/Hz 220~240/1/50
Compressor Rotary
Refrigerant type R410A
Water tank Volume L 100 150 200 250 300
Net Dimensions mm Φ560×1370 Φ560×1560 Φ560×1740 Φ560×1970 Φ640×1860
Packing Dimensions mm 660x630x1570 660x630x1760 660x630x1940 660x630x2120 680x660x2060
Net Weight Kg 65 74 82 92 103
Gross Weight Kg 72 78 87 100 112
Noise level dB(A) 47 48 48 48 48
Features included: Heating
1.5kw auxiliary electrical heater
Electronic expansion valve
One extra set of heat exchanger
Magnesium stick
Relieve / safety valve

NOTES:

Capacities and power inputs based on the following conditions:

– Heating: Ambient temperature 20°C/12°C, Water temperature from 10°C to 55°C.















Contact Person: Ms Wendy Rong

Phone and WhatsAPP: +86 15118604761

Wechat: lyfml2005

Web: www.daishiba.com.cn







Copyright © 2019 FabricatingChina

Up ↑
